Please click on the next arrow to view information on cantilever racks !

previous  Moveable Racks    Cantilever Racks  next





=====================================
Flow Racks
flow racks Application
Pallet picking / large scale distribution


Description
Racks are based on standard rack component uprights with engineered load support beams that to provide a specific angles to the flow lane. The loads are placed on the inbound (higher) side and flow (gravity) to the outbound (lower) side. Loads are slowed via brakes located in the lanes. Some flow racks are manual in nature, others have controlled lanes. Each lane is FIFO - first in - first out - only.

PMH provides flow rack manufacturers with a version of the RF locator system, capable or turning individual lanes on and off without the need for optical sensors. Further the locator system may display lane inventory and be tasked by HOST PC system operating PHS (Pallet Handling System) software.

Advantages

  • Compact Storage
  • FIFO
  • Segregation of shipping / storage / and inbound load
  • Shorten transportation distances for load distribution

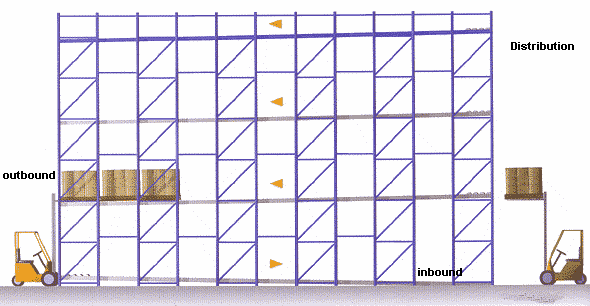

flow rack application


Application as distribution rack
